MAX15001

Current-Mode PWM Controllers

MAX15001 Features

* Current-Mode Control Programmable Switching Frequency Up to 625kHz Accurate UVLO Threshold (1%) Open-Drain UVLO Flag Output with Internal Delay 36V to 72V Telecom Voltage Range Universal Offline Input Voltage Range Rectified 85VAC to 265VAC (MAX15000) 9.5V to 24V Input (MAX15001) Digital Soft-Start

MAX15001 General Description

The MAX15000/MAX15001 current-mode PWM controllers contain all the control circuitry required for the design of wide-input-voltage isolated and nonisolated power supplies. The MAX15000 is well suited for universal input (rectified 85VAC to 265VAC) or telecom (-36VDC to -72VDC) power supplies. The MA.

MAX15001 Datasheet (270.82 KB)

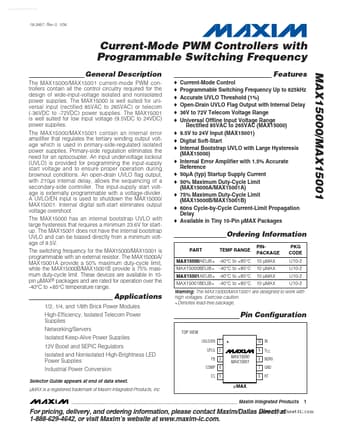

Preview of MAX15001 PDF

Datasheet Details

Part number:

MAX15001

Manufacturer:

Maxim Integrated ↗ Products

File Size:

270.82 KB

Description:

Current-mode pwm controllers.
