MAX15002 - Dual-Output Buck Controller

Datasheet Summary

Description

The MAX15002 is a dual-output, pulse-width-modulated (PWM), step-down DC-DC controller with tracking and sequencing options.

The device operates over the input voltage range of 5.5V to 23V or 5V ±10%.

Features

include lossless valley-mode current limit and hiccup mode output short-circuit protection. The MAX15002 is available in a space-saving, 6mm x 6mm, 40-pin TQFN-EP package and is specified for operation over the -40°C to +125°C automotive temperature range. See the MAX15003 data sheet for a triple version of the MAX15002.

Datasheet Details

Part number	MAX15002
Manufacturer	Maxim Integrated
File Size	627.76 KB
Description	Dual-Output Buck Controller
Datasheet	MAX15002 Datasheet

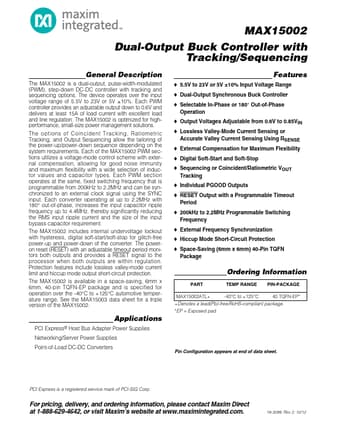

Additional preview pages of the MAX15002 datasheet.

📁 Similar Datasheet

MAX15000 - Current-Mode PWM Controllers (Maxim Integrated Products)

MAX15001 - Current-Mode PWM Controllers (Maxim Integrated Products)

MAX15003 - Triple-Output Buck Controller (Maxim Integrated Products)

MAX15004 - 4.5V to 40V Input Automotive Flyback/Boost/SEPIC Power-Supply Controllers (Maxim Integrated Products)

MAX15005 - 4.5V to 40V Input Automotive Flyback/Boost/SEPIC Power-Supply Controllers (Maxim Integrated Products)

MAX15006 - ultra-low quiescent-current linear regulators (Maxim Integrated Products)

MAX15007 - ultra-low quiescent-current linear regulators (Maxim Integrated Products)

MAX150 - CMOS High Speed 8Bit A/D Converter with Refrence and Track/Hold Function (Maxim)

MAX1501 - Highly Integrated Linear Battery Charger (Maxim Integrated Products)

MAX15020 - Step-Down DC-DC Converter (Maxim Integrated Products)

Full PDF Text Transcription

Click to expand full text

MAX15002 Dual-Output Buck Controller with Tracking/Sequencing General Description The MAX15002 is a dual-output, pulse-width-modulated (PWM), step-down DC-DC controller with tracking and sequencing options. The device operates over the input voltage range of 5.5V to 23V or 5V ±10%. Each PWM controller provides an adjustable output down to 0.6V and delivers at least 15A of load current with excellent load and line regulation. The MAX15002 is optimized for highperformance, small-size power management solutions. The options of Coincident Tracking, Ratiometric Tracking, and Output Sequencing allow the tailoring of the power-up/power-down sequence depending on the system requirements.
