MAX1535A

Highly Integrated Level 2 Smbus Battery Charger

MAX1535A Features

* Compliant with Level 2 Smart Battery Charger Specifications Rev 1.1

* Intel SMBus 2-Wire Serial Interface

* ±0.5% Charge-Voltage Accuracy

* 11-Bit Charge-Voltage Resolution

* ±3% Input Current-Limit Accuracy

* Uses Small (10mΩ) Current-Sense Resistor

MAX1535A Datasheet (843.70 KB)

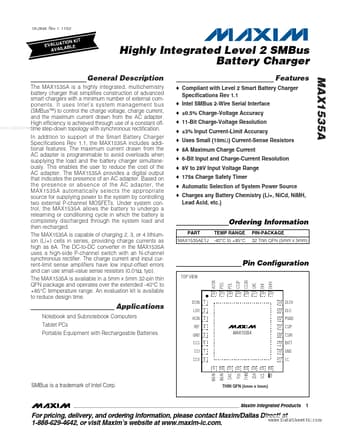

Preview of MAX1535A PDF

Datasheet Details

Part number:

MAX1535A

Manufacturer:

Maxim Integrated ↗ Products

File Size:

843.70 KB

Description:

Highly integrated level 2 smbus battery charger.
