MAX157 - Dual-Channel CardBus and PCMCIA VCC/VPP Power-Switching Networks

MAX157 Description

19-1388; Rev 0; 11/98 +2.7V, Low-Power, 2-Channel, 108ksps, Serial 10-Bit ADCs in 8-Pin µMAX General .
The MAX157/MAX159 low-power, 10-bit analog-to-digital converters (ADCs) are available in 8-pin µMAX and DIP packages.

MAX157 Features

* o Single-Supply Operation (+2.7V to +5.25V) o Two Single-Ended Channels (MAX157) Single Pseudo-Differential Channel (MAX159) o Low Power 0.9mA (at 108ksps, +3V) 100µA (at 10ksps, +3V) 10µA (at 1ksps, +3V)

📥 Download Datasheet

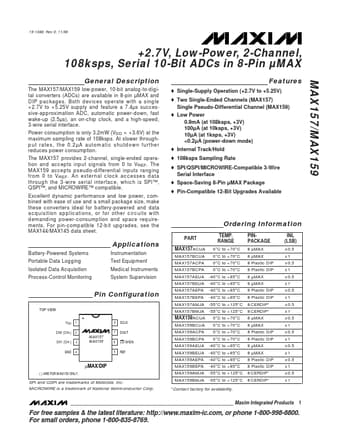

Preview of MAX157 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX157
Manufacturer
Maxim
File Size
238.73 KB
Datasheet
MAX157_MaximIntegratedProducts.pdf
Description
Dual-Channel CardBus and PCMCIA VCC/VPP Power-Switching Networks
