MAX1573

White LED 1x/1.5x Charge Pump

MAX1573 Features

* MAX1573 Applications Cell Phones, Smart Phones PDAs, Digital Cameras, Camcorders MP3 Players Other Handhelds with Color Displays PART MAX1573EBE-T Ordering Information TEMP RANGE -40°C to +85°C PIN-PACKAGE 14 UCSP (4 x 4) Typical Operating Circuit 1µF 1µF Pin Configuration TOP VIEW 1 2 3 4 VIN

MAX1573 General Description

The MAX1573 fractional charge pump drives up to four white LEDs with regulated constant current for uniform intensity. By utilizing proprietary adaptive 1x/1.5x modes and ultra-low-dropout current regulators, it maintains the highest possible efficiency over the full 1-cell Li+ battery input voltage.

MAX1573 Datasheet (258.76 KB)

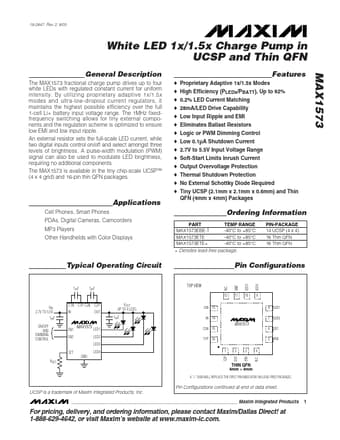

Preview of MAX1573 PDF

Datasheet Details

Part number:

MAX1573

Manufacturer:

Maxim Integrated ↗ Products

File Size:

258.76 KB

Description:

White led 1x/1.5x charge pump.
