MAX1579 - Complete Bias and White LED Power Supplies

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX1579
Manufacturer	Maxim Integrated Products
File Size	255.69 KB
Description	Complete Bias and White LED Power Supplies
Datasheet	MAX1579 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX1579, MAX1578. Please refer to the document for exact specifications by model.
Additional preview pages of the MAX1579 datasheet.

Product details

Description

The MAX1578/MAX1579 provide four regulated outputs to meet all the voltage requirements for small activematrix TFT-LCD displays in handheld devices where minimum external components and high efficiency are required.

Features

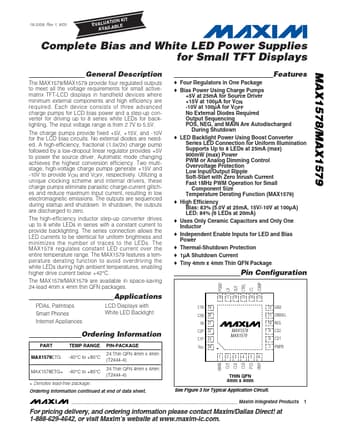

a temperature derating function to avoid overdriving the white LEDs during high ambient temperatures, enabling higher drive current below +42°C. The MAX1578/MAX1579 are available in space-saving 24-lead 4mm x 4mm thin QFN packages. Features.
Four Regulators in One Package.
Bias Power Using Charge Pumps +5V at 25mA for Source Driver +15V at 100µA for VON -10V at 100µA for VOFF No External Diodes Required Output Sequencing POS, NEG, and MAIN Are Autodischarged During Shutdown.
