MAX1605

30V Internal Switch LCD Bias Supply

MAX1605 Features

* include a low quiescent supply current and a shutdown mode to save power. The MAX1605 is ideal for small LCD panels with low current requirements, but can also be used in other applications. A MAX1605EVKIT evaluation kit (EV kit) is available to help speed up design time. Applications

* LCD

MAX1605 General Description

The MAX1605 boost converter contains a 0.5A internal switch in a tiny 6-pin SOT23 package. The IC operates from a +2.4V to +5.5V supply voltage, but can boost battery voltages as low as 0.8V up to 30V at the output. The MAX1605 uses a unique control scheme providing the highest efficiency over a wid.

MAX1605 Datasheet (1.54 MB)

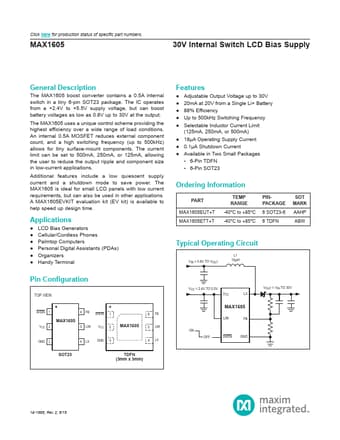

Preview of MAX1605 PDF

Datasheet Details

Part number:

MAX1605

Manufacturer:

Maxim

File Size:

1.54 MB

Description:

30v internal switch lcd bias supply.
