MAX1623 3A / Low-Voltage / Step-Down Regulator

MAX1623 Description

19-1436; Rev 1; 9/99 NUAL KIT MA ATION EET H S A EVALU T WS DA FOLLO 3A, Low-Voltage, Step-Down Regulator with Synchronous Rectification and Interna.
The MAX1623 switch-mode buck regulator with synchronous rectification provides local CPU and bus-termination power in notebook and desktop computers.

MAX1623 Features

* constant-off-time, current-mode pulse-width-modulation (PWM) control with switching frequencies as high as 350kHz. An external resistor at the TOFF pin sets the off-time, allowing optimum design flexibility in terms of switching frequency, output switching noise, and inductor size. This device is av

MAX1623 Applications

* 5V to 3.3V Conversion Notebook Computer CPU I/O Supply Desktop Computer Bus-Termination Supply CPU Daughter Card Supply DSP Supply Ordering Information PART MAX1623EAP TEMP. RANGE -40°C to +85°C PIN-PACKAGE 20 SSOP Typical Operating Circuit TOP VIEW +5V INPUT +2.5V OUTPUT IN LX Pin Configuration

📥 Download Datasheet

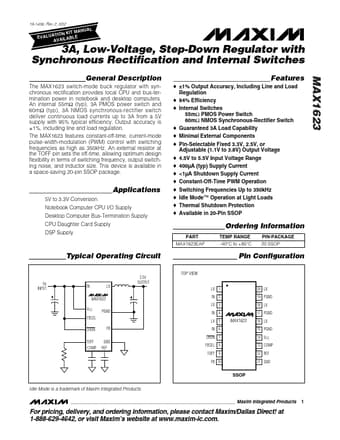

Preview of MAX1623 PDF
datasheet Preview Page 2 datasheet Preview Page 3
