MAX1643 Step-Up DC-DC Converters

📥 Download Datasheet  Datasheet Preview Page 1

Description

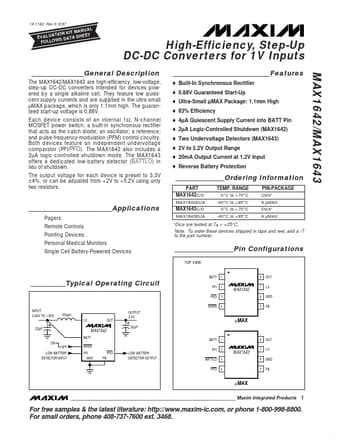

19-1183; Rev 0; 6/97 ANUAL N KIT M EET IO T A U EVAL TA SH WS DA FOLLO High-Efficiency, Step-Up DC-DC Converters for 1V Inputs _____________________.
The MAX1642/MAX1643 are high-efficiency, low-voltage, step-up DC-DC converters intended for devices powered by a single alkaline cell.

📥 Download Datasheet

Preview of MAX1643 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MAX1643
Manufacturer
Maxim
File Size
146.81 KB
Datasheet
MAX1643-Maxim.pdf
Description
Step-Up DC-DC Converters

Features

* o Built-In Synchronous Rectifier o 0.88V Guaranteed Start-Up o Ultra-Small µMAX Package: 1.1mm High o 83% Efficiency o 4µA Quiescent Supply Current into BATT Pin o 2µA Logic-Controlled Shutdown (MAX1642) o Two Undervoltage Detectors (MAX1643) o 2V to 5.2V Output Range o 20mA Output Current at 1.2V I

Applications

* Pagers Remote Controls Pointing Devices Personal Medical Monitors Single-Cell Battery-Powered Devices
* Dice are tested at TA = +25°C. Note: To order these devices shipped in tape and reel, add a -T to the part number. _________________Pin Configurations TOP VIEW BATT 1 8 OUT LX GND FB _______
