MAX1852, SC70 Inverting Charge Pumps with Shutdown

19-1792; Rev 0; 9/00 SC70 Inverting Charge Pumps with Shutdown General .
The MAX1852/MAX1853 monolithic, CMOS chargepump voltage inverters in the ultra-small SC70 package feature a low 15Ω output resistance, permitting load.

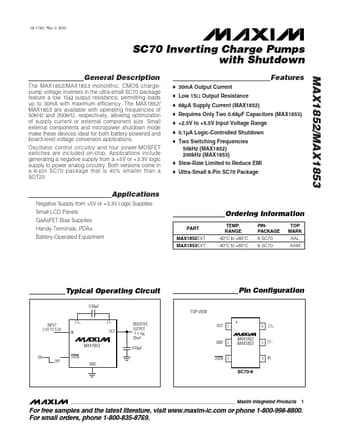

datasheet Preview Page 1 from Datasheet4u.com

MAX1852_MaximIntegratedProducts.pdf

MAX1852 Datasheet Preview — Preview of MAX1852 PDF

Datasheet Details

Part number:

MAX1852

Manufacturer:

Maxim

File Size:

217.81 KB

Description:

SC70 Inverting Charge Pumps with Shutdown

Applications

* Oscillator control circuitry and four power-MOSFET switches are included on-chip. Applications include generating a negative supply from a +5V or +3.3V logic supply to power analog circuitry. Both versions come in a 6-pin SC70 package that is 40% smaller than a SOT23. o 30mA Output Current o Low 15
