MAX199 - Multi-Range (4V / 2V / +4V / +2V) / +5V Supply / 12-Bit DAS with 8+4 Bus Interface

Product Overview

Maxim

Datasheet Details

Part number	MAX199
Manufacturer	Maxim
File Size	165.95 KB
Description	Multi-Range (4V / 2V / +4V / +2V) / +5V Supply / 12-Bit DAS with 8+4 Bus Interface
Datasheet	MAX199 Datasheet

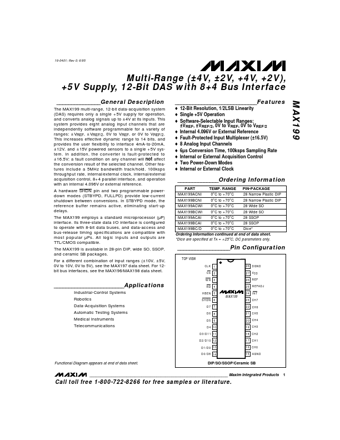

Additional preview pages of the MAX199 datasheet.

Product details

Description

The MAX199 multi-range, 12-bit data-acquisition system (DAS) requires only a single +5V supply for operation, and converts analog signals up to ±4V at its inputs.

Features

include a 5MHz bandwidth track/hold, 100ksps throughput rate, internal/external clock, internal/external acquisition control, 8+4 parallel interface, and operation with an internal 4.096V or external reference. A hardware SHDN pin and two programmable powerdown modes (STBYPD, FULLPD) provide low-current shutdown between conversions. In STBYPD mode, the reference buffer remains active, eliminating start-up delays. The MAX199 employs a standard microprocessor (µP) interface. Its three-state data I.
