MAX19995A Datasheet, mixer equivalent, Maxim Integrated Products

MAX19995A Features

  • Mixer
  • 1700MHz to 2200MHz RF Frequency Range
  • 1750MHz to 2700MHz LO Frequency Range
  • 50MHz to 500MHz IF Frequency Range
  • 8.7dB Typical Conversion Gain

PDF File Details

Part number:

MAX19995A

Manufacturer:

Maxim Integrated (https://www.analog.com/) Products

File Size:

448.86kb

Download:

📄 Datasheet

Description:

1700mhz to 2200mhz downconversion mixer. The MAX19995A dual-channel downconverter is designed to provide 8.7dB of conversion gain, +24.8dBm input IP3, +13.5dBm 1dB input comp

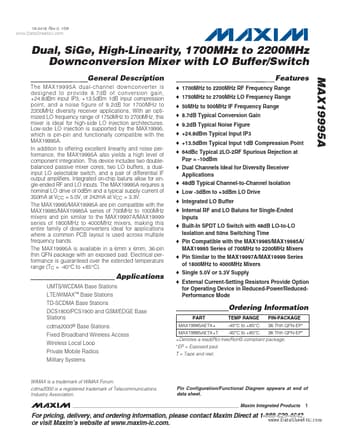

Datasheet Preview: MAX19995A 📥 Download PDF (448.86kb)
Page 2 of MAX19995A Page 3 of MAX19995A

MAX19995A Application

  • Applications With an optimized LO frequency range of 1750MHz to 2700MHz, this mixer is ideal for high-side LO injection architectures. Low-side LO
