MAX2244, 2.5GHz / 22dBm/20dBm Power Amplifiers

19-2204; Rev 2; 8/03 2.5GHz, 22dBm/20dBm Power Amplifiers with Analog Closed-Loop Power Control General .
The MAX2244/MAX2245/MAX2246 single-supply, lowvoltage power amplifiers (PAs) are designed for 20dBm Bluetooth™ Class 1 applications in the 2.

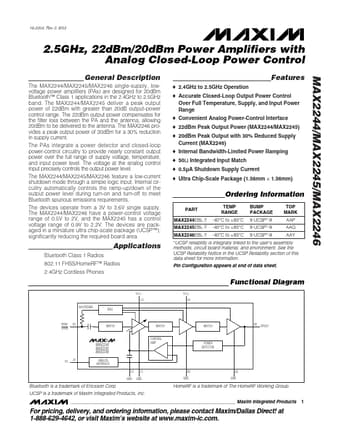

datasheet Preview Page 1 from Datasheet4u.com

MAX2244_MaximIntegratedProducts.pdf

MAX2244 Datasheet Preview — Preview of MAX2244 PDF

Datasheet Details

Part number:

MAX2244

Manufacturer:

Maxim

File Size:

312.91 KB

Description:

2.5GHz / 22dBm/20dBm Power Amplifiers

Features

* MAX2244/MAX2245/MAX2246 Ordering Information PART MAX2244EBL-T MAX2245EBL-T MAX2246EBL-T TEMP RANGE -40°C to +85°C -40°C to +85°C -40°C to +85°C BUMP PACKAGE 9 UCSP
* -9 9 UCSP
* -9 9 UCSP

Applications

* in the 2.4GHz to 2.5GHz band. The MAX2244/MAX2245 deliver a peak output power of 22dBm with greater than 20dB output-power control range. The 22dBm output power compensates for the filter loss between the PA and the antenna, allowing 20dBm to be delivered to the antenna. The MAX2246 provides a peak
