MAX2246

22dBm/20dBm Power Amplifiers

MAX2246 Features

* MAX2244/MAX2245/MAX2246 Ordering Information PART MAX2244EBL-T MAX2245EBL-T MAX2246EBL-T TEMP RANGE -40°C to +85°C -40°C to +85°C -40°C to +85°C BUMP PACKAGE 9 UCSP

* -9 9 UCSP

* -9 9 UCSP

* -9 TOP MARK AAP AAQ AAY Applications Bluetooth Class 1 Radios 802.11 FHSS/HomeRF™ Radios 2.4GHz Cord

MAX2246 General Description

The MAX2244/MAX2245/MAX2246 single-supply, lowvoltage power amplifiers (PAs) are designed for 20dBm Bluetooth™ Class 1 applications in the 2.4GHz to 2.5GHz band. The MAX2244/MAX2245 deliver a peak output power of 22dBm with greater than 20dB output-power control range. The 22dBm output power compens.

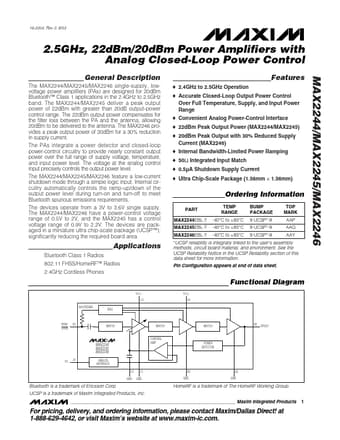

MAX2246 Datasheet (312.91 KB)

Preview of MAX2246 PDF

Datasheet Details

Part number:

MAX2246

Manufacturer:

Maxim

File Size:

312.91 KB

Description:

22dbm/20dbm power amplifiers.
