MAX224

(MAX220 - MAX249) +5V-Powered / Multichannel RS-232 Drivers/Receivers

MAX224 Features

* Saves Board Space

* Integrated Charge Pump Circuitry

* Eliminates the Need for a Bipolar ±12V Supply

* Enables Single Supply Operation from +5V Supply

* Integrated Capacitors (MAX223, MAX233, MAX235, MAX245-MAX247) Saves Power for Reduced Power Requirements

MAX224 General Description

The MAX220

*MAX249 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX225, MAX233, MAX235, and MAX245/MAX246/ MAX247 use no external components and are recommended for applica.

MAX224 Datasheet (376.30 KB)

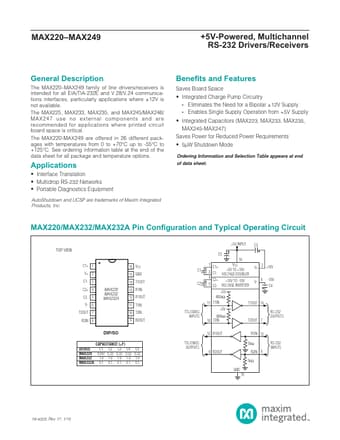

Preview of MAX224 PDF

Datasheet Details

Part number:

MAX224

Manufacturer:

Maxim Integrated ↗ Products

File Size:

376.30 KB

Description:

(max220 - max249) +5v-powered / multichannel rs-232 drivers/receivers.
