MAX2204, RF Power Detector

19-0753; Rev 0; 4/07 KIT ATION EVALU E L B AVAILA RF Power Detector General .
Features o -16dBm to +5dBm Detection Range o ±0.

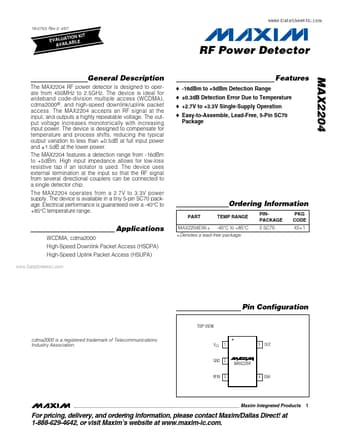

datasheet Preview Page 1 from Datasheet4u.com

MAX2204_MaximIntegratedProducts.pdf

MAX2204 Datasheet Preview — Preview of MAX2204 PDF

Datasheet Details

Part number:

MAX2204

Manufacturer:

Maxim Integrated ↗ Products

File Size:

185.38 KB

Description:

RF Power Detector

Features

* o -16dBm to +5dBm Detection Range o ±0.3dB Detection Error Due to Temperature o +2.7V to +3.3V Single-Supply Operation o Easy-to-Assemble, Lead-Free, 5-Pin SC70 Package MAX2204 The MAX2204 RF power detector is designed to operate from 450MHz to 2.5GHz. The device is ideal for wideband code-divisio

Applications

* WCDMA, cdma2000 High-Speed Downlink Packet Access (HSDPA) High-Speed Uplink Packet Access (HSUPA) www. DataSheet4U. com MAX2204EXK+ -40°C to +85°C +Denotes a lead-free package. Pin Configuration TOP VIEW cdma2000 is a registered trademark of Telecommunications Industry Association. + VCC 1 5 OUT
