MAX2660, 400MHz to 2.5GHz Upconverter Mixers

19-1382; Rev 1; 9/99 UALS IT MAN TION K A ET U E L H A S A EV W DAT FOLLO 400MHz to 2.5GHz Upconverter Mixers General .
Features o RF Output Frequencies: 400MHz to 2.

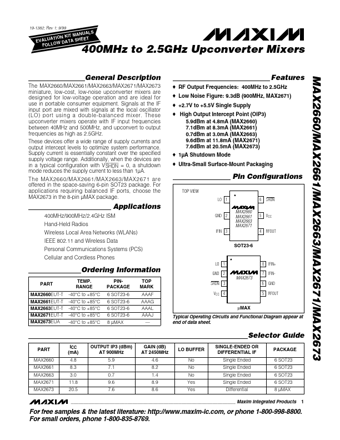

datasheet Preview Page 1 from Datasheet4u.com

MAX2660_MaximIntegratedProducts.pdf

MAX2660 Datasheet Preview — Preview of MAX2660 PDF

Datasheet Details

Part number:

MAX2660

Manufacturer:

Maxim

File Size:

234.51 KB

Description:

400MHz to 2.5GHz Upconverter Mixers

Features

* o RF Output Frequencies: 400MHz to 2.5GHz o Low Noise Figure: 9.3dB (900MHz, MAX2671) o +2.7V to +5.5V Single Supply o High Output Intercept Point (OIP3) 5.9dBm at 4.8mA (MAX2660) 7.1dBm at 8.3mA (MAX2661) 0.7dBm at 3.0mA (MAX2663) 9.6dBm at 11.8mA (MAX2671) 7.6dBm at 20.5mA (MAX2673) o 1µA Shutdown

Applications

* requiring balanced IF ports, choose the MAX2673 in the 8-pin µMAX package. Pin Configurations TOP VIEW LO 1 6 SHDN Applications 400MHz/900MHz/2.4GHz ISM Hand-Held Radios Wireless Local Area Networks (WLANs) IEEE 802.11 and Wireless Data Personal Communications Systems (PCS) Cellular and Cordless P
