MAX2680 Datasheet, Mixers, Maxim

MAX2680 Features

• Mixers o 400MHz to 2.5GHz Operation o +2.7V to +5.5V Single-Supply Operation o Low Noise Figure: 6.3dB at 900MHz (MAX2680) o High Input Third-Order Intercept Point (IIP3 at 2450MHz) -6.9dBm at

PDF File Details

Part number:

MAX2680

Manufacturer:

Maxim

File Size:

486.38kb

Download:

📄 Datasheet

Description:

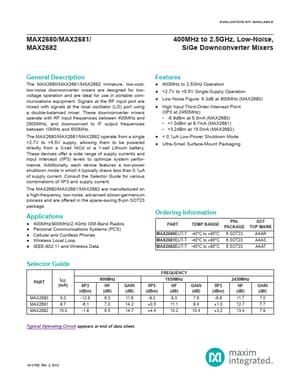

Sige downconverter mixers. The MAX2680/MAX2681/MAX2682 miniature, low-cost, low-noise downconverter mixers are designed for lowvoltage operation and are ideal f

MAX2680 Application

• Applications 400MHz/900MHz/2.4GHz ISM-Band Radios Personal Communications Systems (PCS) Cellular and Cordless Phones Wireless Local Loop IEEE-802.11
