MAX392 - Precision / Quad / SPST Analog Switches

This page provides the datasheet information for the MAX392, a member of the MAX Precision / Quad / SPST Analog Switches family.

Datasheet Summary

Description

The MAX391/MAX392/MAX393 are precision, quad, single-pole/single-throw (SPST) analog switches designed to operate at +3V, +5V, or ±5V.

The MAX391 has four normally closed (NC) switches, and the MAX392 has four normally open (NO) switches.

The MAX393 has two NO and two NC switches.

Features

  • o Low On-Resistance, 20Ω Typical o Guaranteed On-Resistance Match Between Channels,.

📥 Download Datasheet

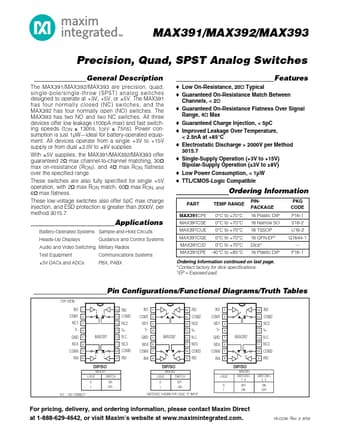

Datasheet preview – MAX392

Datasheet Details

Part number MAX392
Manufacturer Maxim
File Size 617.85 KB
Description Precision / Quad / SPST Analog Switches
Datasheet download datasheet MAX392 Datasheet
Additional preview pages of the MAX392 datasheet.

📁 Similar Datasheet

  • MAX394 - CMOS Analog Switch (Analog Devices)
  • MAX3940 - 10Gbps EAM Driver (Maxim Integrated Products)
  • MAX3942 - 10Gbps Modulator Driver (Maxim Integrated Products)
  • MAX3945 - SFP+ Dual-Path Limiting Amplifier (Maxim Integrated Products)
  • MAX3946 - SFP+ Laser Driver (Maxim Integrated Products)
  • MAX3949 - AC-Coupled Laser Driver (Maxim Integrated)
  • MAX3964 - (MAX3964 - MAX3968) 125Mbps to 266Mbps Limiting Amplifiers (Maxim Integrated Products)
  • MAX3964A - 125Mbps to 266Mbps Limiting Amplifiers (Maxim Integrated Products)
  • MAX3965 - (MAX3964 - MAX3968) 125Mbps to 266Mbps Limiting Amplifiers (Maxim Integrated Products)
  • MAX3968 - (MAX3964 - MAX3968) 125Mbps to 266Mbps Limiting Amplifiers (Maxim Integrated Products)
Other Datasheets by Maxim
  • MAX3901 - 150Mbps Automotive Fiber Optic Receivers
  • MAX3902 - 150Mbps Automotive Fiber Optic Receivers
  • MAX391 - Precision / Quad / SPST Analog Switches
  • MAX393 - Precision / Quad / SPST Analog Switches
  • MAX3935 - 10.7Gbps EAM Driver
  • MAX394 - Low-Voltage / Quad / SPDT / CMOS Analog Switch
  • MAX3941 - 10Gbps EAM Driver with Integrated Bias Network
  • MAX395 - Serially Controlled / Low-Voltage / 8-Channel SPST Switch

Full PDF Text Transcription

Click to expand full text
19-0236; Rev 1; 6/99 Precision, Quad, SPST Analog Switches General Description The MAX391/MAX392/MAX393 are precision, quad, single-pole/single-throw (SPST) analog switches designed to operate at +3V, +5V, or ±5V. The MAX391 has four normally closed (NC) switches, and the MAX392 has four normally open (NO) switches. The MAX393 has two NO and two NC switches. All three devices offer low leakage (100pA max) and fast switching speeds (tON ≤ 130ns, tOFF ≤ 75ns). Power consumption is just 1µW—ideal for battery-operated equipment. All devices operate from a single +3V to +15V supply or from dual ±3.0V to ±8V supplies. With ±5V supplies, the MAX391/MAX392/MAX393 offer guaranteed 2Ω max channel-to-channel matching, 30Ω max on-resistance (RON), and 4Ω max RON flatness over the specified range.
