MAX3935 - 10.7Gbps EAM Driver

Datasheet Summary

Description

The MAX3935 is designed to drive an electro-absorption modulator (EAM) at data rates up to 10.7Gbps.

It provides programmable output levels through externally adjustable bias and modulation currents.

This EAM driver is fabricated with Maxim’s in-house second-generation SiGe process.

Features

  • MAX3935† o Modulation Enable Control o ESD Protection Ordering Information PART MAX3935EGJ MAX3935E/D TEMP RANGE -40°C to +85°C -40°C to +85°C PIN-.

📥 Download Datasheet

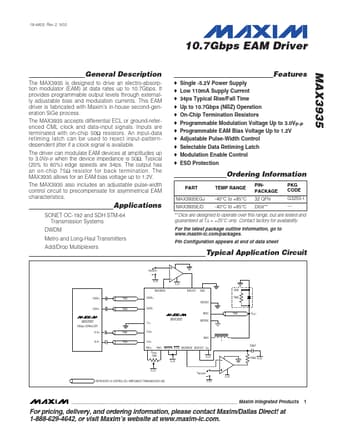

Datasheet preview – MAX3935

Datasheet Details

Part number MAX3935
Manufacturer Maxim
File Size 1.43 MB
Description 10.7Gbps EAM Driver
Datasheet download datasheet MAX3935 Datasheet
Additional preview pages of the MAX3935 datasheet.
