MAX3949 - AC-Coupled Laser Driver

Datasheet Summary

Description

The MAX3949 is a 3.3V, multirate, low-power laser diode driver designed for Ethernet, Fibre Channel, and SONET transmission systems at data rates up to 11.3Gbps.

This device is optimized to drive a differential transmitter optical subassembly (TOSA) with a 25Ω flex circuit.

Features

  • Low Power Consumption.
  • Saves Board Space.
  • Small 3mm x 3mm Package.
  • Flexibility.
  • Programmable Modulation Current Up to 85mA (5Ω Load).
  • Programmable Bias Current Up to 105mA.
  • Programmable Input Equalization and Output Deemphasis.
  • Safety.
  • Supports SFF-8431 SFP+ MSA and SFF-8472 Digital Diagnostic.
  • Integrated Eye Safety Features with Maskable Faults.
  • Bias Current Monitor.

📥 Download Datasheet

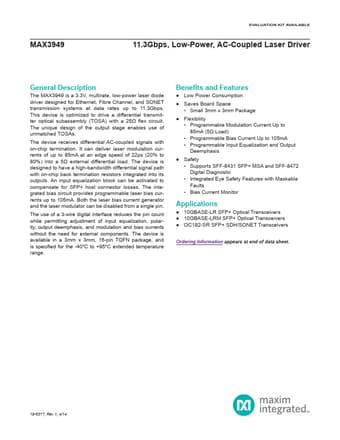

Datasheet preview – MAX3949

Datasheet Details

Part number MAX3949
Manufacturer Maxim Integrated
File Size 2.17 MB
Description AC-Coupled Laser Driver
Datasheet download datasheet MAX3949 Datasheet
Additional preview pages of the MAX3949 datasheet.

📁 Similar Datasheet

  • MAX394 - Low-Voltage / Quad / SPDT / CMOS Analog Switch (Maxim)
  • MAX394 - CMOS Analog Switch (Analog Devices)
  • MAX3940 - 10Gbps EAM Driver (Maxim Integrated Products)
  • MAX3941 - 10Gbps EAM Driver with Integrated Bias Network (Maxim)
  • MAX3942 - 10Gbps Modulator Driver (Maxim Integrated Products)
  • MAX3945 - SFP+ Dual-Path Limiting Amplifier (Maxim Integrated Products)
  • MAX3946 - SFP+ Laser Driver (Maxim Integrated Products)
  • MAX3901 - 150Mbps Automotive Fiber Optic Receivers (Maxim)
  • MAX3902 - 150Mbps Automotive Fiber Optic Receivers (Maxim)
  • MAX391 - Precision / Quad / SPST Analog Switches (Maxim)
Other Datasheets by Maxim Integrated
  • MAX30001 - Single-Channel Integrated Biopotential and Bioimpedance AFE
  • MAX30002 - Single-Channel Integrated Bioimpedance AFE
  • MAX30003 - Ultra-Low Power Single-Channel Integrated Biopotential
  • MAX30100 - Pulse Oximeter and Heart-Rate Sensor
  • MAX30101 - High-Sensitivity Pulse Oximeter and Heart-Rate Sensor
  • MAX30102 - High-Sensitivity Pulse Oximeter and Heart-Rate Sensor
  • MAX30105 - MAX30105 High-Sensitivity Optical Sensor
  • MAX30110 - Optimized Pulse-Oximeter and Heart-Rate AFE

Full PDF Text Transcription

Click to expand full text
MAX3949 EVALUATION KIT AVAILABLE 11.3Gbps, Low-Power, AC-Coupled Laser Driver General Description The MAX3949 is a 3.3V, multirate, low-power laser diode driver designed for Ethernet, Fibre Channel, and SONET transmission systems at data rates up to 11.3Gbps. This device is optimized to drive a differential transmitter optical subassembly (TOSA) with a 25Ω flex circuit. The unique design of the output stage enables use of unmatched TOSAs. The device receives differential AC-coupled signals with on-chip termination. It can deliver laser modulation currents of up to 85mA at an edge speed of 22ps (20% to 80%) into a 5Ω external differential load. The device is designed to have a high-bandwidth differential signal path with on-chip back termination resistors integrated into its outputs.
