MAX3941 - 10Gbps EAM Driver with Integrated Bias Network

MAX3941 Description

19-2935; Rev 0; 7/03 10Gbps EAM Driver with Integrated Bias Network General .
The MAX3941 is designed to drive an electro-absorption modulator (EAM) at data rates up to 10.

MAX3941 Features

* On-Chip Bias Network 23ps Edge Speed Programmable Modulation Voltage Up to 3VP-P Programmable EAM Biasing Voltage Up to 1.25V Selectable Data-Retiming Latch Up to 10.7Gbps Operation Integrated Modulation and Biasing Functions 50Ω On-Chip Input and Output Terminations Pulse-Width Adjustment Enable an

MAX3941 Applications

* SONET OC-192 and SDH STM-64 Transmission Systems DWDM Systems Long/Short-Reach Optical Transmitters 10Gbps Ethernet Typical Application Circuit -5.2V 0.01µF DATA+ 0.01µF 50Ω 50Ω DATA+ PLRT MODEN RTEN GND EAM MAX3952 10Gbps SERIALIZER DATA- DATA- 0.01µF CLK+ 0.01µF CLK50Ω CLKPWC+ 2kΩ REPRESE

📥 Download Datasheet

Preview of MAX3941 PDF

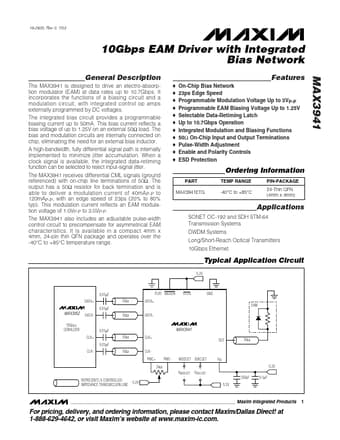

datasheet Preview Page 2 datasheet Preview Page 3
