MAX4005 950MHz FET-Input Buffer with 75 Output

The MAX4005 is a ±5V, single-ended unity-gain buffer with a high-impedance JFET input, intended to drive a 75Ω load. A 75Ω thin-film output resistor is included onboard to minimize reflections when driving a 75Ω load through a transmission line of arbitrary length. Gain in this configuration is 0.5..

MAX4005 Features

* o 950MHz Bandwidth o 350ps Rise/Fall Times o 0.11%/0.03° Differential Gain/Phase Error o 1000V/µs Slew Rate o 10pA Input Bias Current o 75Ω Output Impedance MAX4005 ________________________Applications Video Buffer / Line Driver Isolation Between High-Impedance Node and Low-Impedance Instrument Re

MAX4005_MaximIntegratedProducts.pdf

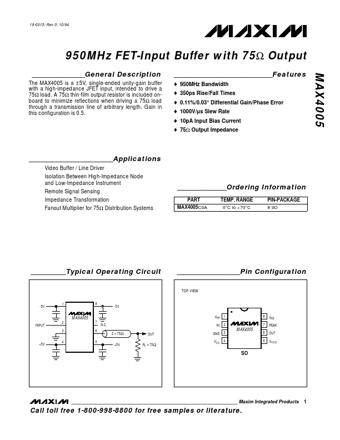

Preview of MAX4005 PDF
