MAX4012 - Low-Cost / High-Speed / SOT23 / Single-Supply Op Amps

Name: MAX4012
SKU: MAX4012-498113

Maxim

📥 Download Datasheet

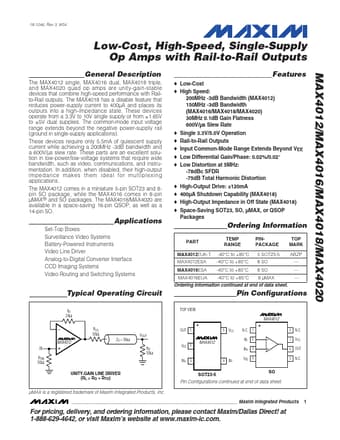

MAX4012 Datasheet Preview — Preview of MAX4012 PDF

Datasheet Details

Part number	MAX4012
Manufacturer	Maxim
File Size	774.21 KB
Description	Low-Cost / High-Speed / SOT23 / Single-Supply Op Amps
Datasheet	MAX4012_MaximIntegratedProducts.pdf

MAX4012 Product details

Description

The MAX4012 single, MAX4016 dual, MAX4018 triple, and MAX4020 quad op amps are unity-gain-stable devices that combine high-speed performance with Rail-to-Rail® outputs.

Features

o Low-Cost o High Speed: 200MHz -3dB Bandwidth (MAX4012) 150MHz -3dB Bandwidth (MAX4016/18/20) 30MHz 0.1dB Gain Flatness 600V/µs Slew Rate o Single 3.3V/5.0V Operation o Rail-to-Rail Outputs o Input Common-Mode Range Extends Beyond VEE o Low Differential Gain/Phase: 0.02%/0.02° o Low Distortion at 5MHz: -78dBc SFDR -75dB Total Harmonic Distortion o High Output Drive: ±120mA o 400µA Shutdown Capability (MAX4018) o High Output Impedance in Off State (MAX4018) o Space-Saving SOT23-5, µMAX, or QSOP.
