MAX40109 - Precision Signal Conditioning AFE

Datasheet Summary

Description

The MAX40109 is a low-power, precision sensor interface SoC that includes a high-precision, programmable Analog frontend (AFE), Analog-to-Digital Converter (ADC), calibration memory, and digital signal processing.

Features

  • Analog Front-End to Interface with Resistive Bridge-Based Pressure Sensors.
  • Temperature Measurement either directly from the Resistive Bridge or from an External Thermistor.
  • Analog Zero-Pressure Offset Compensation.
  • High-Precision PGA Front-End with 20 Gain Options.
  • Analog and Digital Outputs.
  • Digital 1-Wire, Power Line Communication (PLC) and I2C interfaces.
  • Calibration Memory with Third-Order Polynomial for Compensation from Tempe.

📥 Download Datasheet

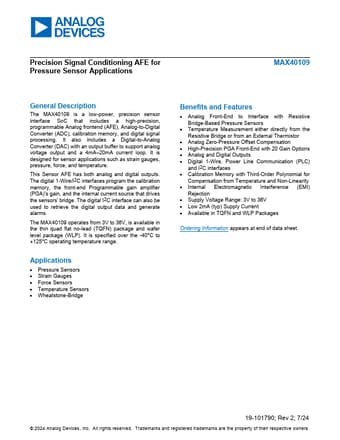

Datasheet preview – MAX40109

Datasheet Details

Part number MAX40109
Manufacturer Analog Devices
File Size 1.54 MB
Description Precision Signal Conditioning AFE
Datasheet download datasheet MAX40109 Datasheet
Additional preview pages of the MAX40109 datasheet.

📁 Similar Datasheet

  • MAX40100 - Low-Power and Low-Noise Op Amp (Maxim Integrated)
  • MAX4012 - Low-Cost / High-Speed / SOT23 / Single-Supply Op Amps (Maxim)
  • MAX4014 - Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers (Maxim)
  • MAX4016 - Low-Cost / High-Speed / SOT23 / Single-Supply Op Amps (Maxim)
  • MAX4017 - Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers (Maxim)
  • MAX4018 - Low-Cost / High-Speed / SOT23 / Single-Supply Op Amps (Maxim)
  • MAX4019 - Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers (Maxim)
  • MAX400 - Ultra Low Offset Voltage Operational Amplifier (Maxim)
  • MAX4000 - 2.5GHz 45dB RF-Detecting Controllers (Maxim)
  • MAX40000 - 1.7V nanoPower Comparators (Maxim Integrated)
Other Datasheets by Analog Devices

Full PDF Text Transcription

Click to expand full text
Precision Signal Conditioning AFE for Pressure Sensor Applications MAX40109 General Description The MAX40109 is a low-power, precision sensor interface SoC that includes a high-precision, programmable Analog frontend (AFE), Analog-to-Digital Converter (ADC), calibration memory, and digital signal processing. It also includes a Digital-to-Analog Converter (DAC) with an output buffer to support analog voltage output and a 4mA–20mA current loop. It is designed for sensor applications such as strain gauges, pressure, force, and temperature. This Sensor AFE has both analog and digital outputs. The digital 1-Wire/I2C interfaces program the calibration memory, the front-end Programmable gain amplifier (PGA)'s gain, and the internal current source that drives the sensors' bridge.
