MAX4017 - Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers

Datasheet Summary

Description

The MAX4014/MAX4017/MAX4019/MAX4022 are precision, closed-loop, gain of +2 (or -1) buffers featuring high slew rates, high output current drive, and low differential gain and phase errors.

These single-supply devices operate from +3.15V to +11V, or from ±1.575V to ±5.5V dual supplies.

Features

  • o Internal Precision Resistors for Closed-Loop Gains of +2 or -1 o High Speed: 200MHz -3dB Bandwidth 30MHz 0.1dB Gain Flatness (6MHz min) 600V/µs Slew Rate o Single 3.3V/5.0V Operation o Outputs Swing Rail-to-Rail o Input Voltage Range Extends Beyond VEE o Low Differential Gain/Phase: 0.04%/0.02° o Low Distortion at 5MHz: -78dBc Spurious-Free Dynamic Range -75dB Total Harmonic Distortion o High Output Drive: ±120mA o Low, 5.5mA Supply Current o 400µA Shutdown Supply Current o Space-Saving SOT23-.

📥 Download Datasheet

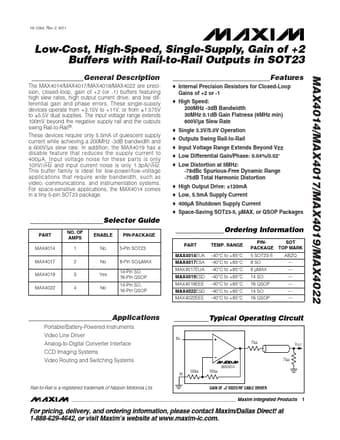

Datasheet preview – MAX4017

Datasheet Details

Part number MAX4017
Manufacturer Maxim
File Size 257.43 KB
Description Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers
Datasheet download datasheet MAX4017 Datasheet
Additional preview pages of the MAX4017 datasheet.

📁 Similar Datasheet

  • MAX40100 - Low-Power and Low-Noise Op Amp (Maxim Integrated)
  • MAX40109 - Precision Signal Conditioning AFE (Analog Devices)
  • MAX40000 - 1.7V nanoPower Comparators (Maxim Integrated)
  • MAX40001 - 1.7V nanoPower Comparators (Maxim Integrated)
  • MAX40002 - nanoPower 4-Bump Comparator (Analog Devices)
  • MAX40002 - nanoPower 4-Bump Comparator (Maxim Integrated)
  • MAX40003 - nanoPower 4-Bump Comparator (Analog Devices)
  • MAX40003 - nanoPower 4-Bump Comparator (Maxim Integrated)
  • MAX40004 - nanoPower 4-Bump Comparator (Analog Devices)
  • MAX40004 - nanoPower 4-Bump Comparator (Maxim Integrated)
Other Datasheets by Maxim
  • MAX4012 - Low-Cost / High-Speed / SOT23 / Single-Supply Op Amps
  • MAX4014 - Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers
  • MAX4016 - Low-Cost / High-Speed / SOT23 / Single-Supply Op Amps
  • MAX4018 - Low-Cost / High-Speed / SOT23 / Single-Supply Op Amps
  • MAX4019 - Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers
  • MAX400 - Ultra Low Offset Voltage Operational Amplifier
  • MAX4000 - 2.5GHz 45dB RF-Detecting Controllers
  • MAX4001 - 2.5GHz 45dB RF-Detecting Controllers

Full PDF Text Transcription

Click to expand full text
19-1284; Rev 0; 10/97 Low-Cost, High-Speed, Single-Supply, Gain of +2 Buffers with Rail-to-Rail Outputs in SOT23 _______________General Description The MAX4014/MAX4017/MAX4019/MAX4022 are precision, closed-loop, gain of +2 (or -1) buffers featuring high slew rates, high output current drive, and low differential gain and phase errors. These single-supply devices operate from +3.15V to +11V, or from ±1.575V to ±5.5V dual supplies. The input voltage range extends 100mV beyond the negative supply rail and the outputs swing Rail-to-Rail®. These devices require only 5.5mA of quiescent supply current while achieving a 200MHz -3dB bandwidth and a 600V/µs slew rate. In addition, the MAX4019 has a disable feature that reduces the supply current to 400µA.
