MAX4014 - Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers

Name: MAX4014
SKU: MAX4014-498115

Maxim

📥 Download Datasheet

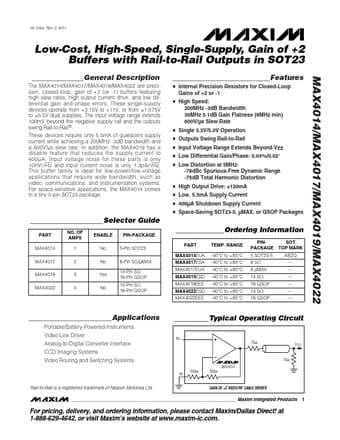

MAX4014 Datasheet Preview — Preview of MAX4014 PDF

Datasheet Details

Part number	MAX4014
Manufacturer	Maxim
File Size	271.50 KB
Description	Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers
Datasheet	MAX4014_MaximIntegratedProducts.pdf

MAX4014 Product details

Description

The MAX4014/MAX4017/MAX4019/MAX4022 are precision, closed-loop, gain of +2 (or -1) buffers featuring high slew rates, high output current drive, and low differential gain and phase errors.

Features

o Internal Precision Resistors for Closed-Loop Gains of +2 or -1 o High Speed: 200MHz -3dB Bandwidth 30MHz 0.1dB Gain Flatness (6MHz min) 600V/µs Slew Rate o Single 3.3V/5.0V Operation o Outputs Swing Rail-to-Rail o Input Voltage Range Extends Beyond VEE o Low Differential Gain/Phase: 0.04%/0.02° o Low Distortion at 5MHz: -78dBc Spurious-Free Dynamic Range -75dB Total Harmonic Distortion o High Output Drive: ±120mA o Low, 5.5mA Supply Current o 400µA Shutdown Supply Current o Space-Saving SOT23-.
