MAX402 Datasheet - Maxim

MAX402 - Micropower Op Amps

The MAX402/MAX403/MAX438/MAX439 micropower op amps combine high-speed performance with low-power operation.

The MAX402/MAX403 are compensated for unity-gain stability, while the MAX438/MAX439 are compensated for stability in applications with a closed-loop gain (AVCL) of 5V/V or greater.

The MAX402/

MAX402 Features

* MAX402 o 2MHz Unity-Gain Bandwidth o 6V/µs Slew Rate o 75µA Max Supply Current MAX403 o 10MHz Unity-Gain Bandwidth o 40V/µs Slew Rate o 375µA Max Supply Current MAX438 o 6MHz Gain Bandwidth (AVCL ≥ 5V/V) o 10V/µs Slew Rate o 75µA Max Supply Current MAX439 o 25MHz Gain Bandwidth (AVCL ≥ 5V/V) o 48V/µ

MAX402-Maxim.pdf

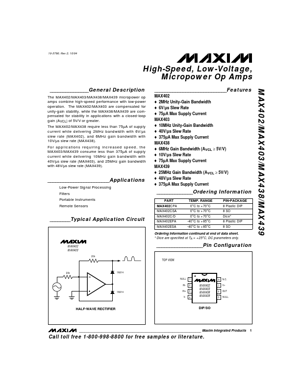

Preview of MAX402 PDF
MAX402 Datasheet Preview Page 2 MAX402 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX402

Manufacturer:

Maxim

File Size:

143.64 KB

Description:

Micropower op amps.
