MAX472 - Precision / High-Side Current-Sense Amplifiers

Maxim

The MAX472 by Maxim is a Precision / High-Side Current-Sense Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

MAX472 Precision / High-Side Current-Sense Amplifiers by Maxim - Datasheet Preview — Official preview page of the **MAX472** Precision / High-Side Current-Sense Amplifiers datasheet (Maxim).

Datasheet Details

Part number	MAX472
Manufacturer	Maxim
File Size	120.79 KB
Description	Precision / High-Side Current-Sense Amplifiers
Datasheet	MAX472_MaximIntegratedProducts.pdf
Additional preview pages of the MAX472 datasheet.

MAX472 Product details

Description

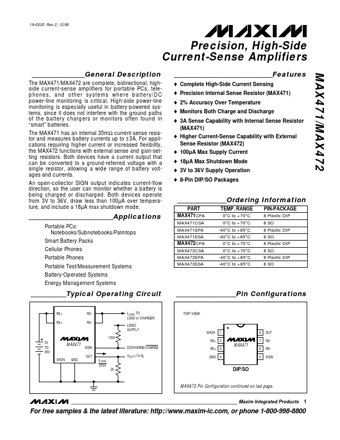

The MAX471/MAX472 are complete, bidirectional, highside current-sense amplifiers for portable PCs, telephones, and other systems where battery/DC power-line monitoring is critical.

Features

o Complete High-Side Current Sensing o Precision Internal Sense Resistor (MAX471) o 2% Accuracy Over Temperature o Monitors Both Charge and Discharge o 3A Sense Capability with Internal Sense Resistor (MAX471) o Higher Current-Sense Capability with External Sense Resistor (MAX472) o 100µA Max Supply Current o 18µA Max Shutdown Mode o 3V to 36V Supply Operation o 8-Pin DIP/SO Packages MAX471/MAX472 ______________Ordering Information PART MAX471CPA MAX471CSA MAX471EPA MAX471ESA MAX472CPA MAX472C.
