MAX477

300MHz High-Speed Op Amp

MAX477 Features

* o High Speed: 300MHz -3dB Bandwidth (AV = +1) 200MHz Full-Power Bandwidth (AV = +1, Vo = 2Vp-p) 1100V/µs Slew Rate 130MHz 0.1dB Gain Flatness o Drives 100pF Capacitive Loads Without Oscillation o Low Differential Phase/Gain Error: 0.01°/0.01% o 8mA Quiescent Current o Low Input-Referred Voltage Nois

MAX477 General Description

The MAX477 is a ±5V wide-bandwidth, fast-settling, unity-gain-stable op amp featuring low noise, low differential gain and phase errors, high slew rate, high precision, and high output current. The MAX477’s architecture uses a standard voltage-feedback topology that can be configured into any desire.

MAX477 Datasheet (178.01 KB)

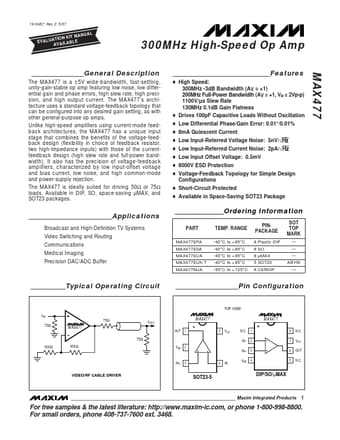

Preview of MAX477 PDF

Datasheet Details

Part number:

MAX477

Manufacturer:

Maxim

File Size:

178.01 KB

Description:

300mhz high-speed op amp.
