MAX5858A

Dual / 10-Bit / 300Msps DAC

Maxim

MAX5858A Features

* digital control of channel gain matching to within ±0.4dB in sixteen 0.05dB steps. Channel matching improves sideband suppression in analog quadrature modulation applications. The onchip 1.24V bandgap reference includes a control amplifier that allows external full-scale adjustments of both channels

MAX5858A General Description

The MAX5858A dual, 10-bit, 300Msps digital-to-analog converter (DAC) provides superior dynamic performance in wideband communication systems. The MAX5858A integrates two 10-bit DAC cores, 4x/2x/1x programmable digital interpolation filters, phase-lock loop (PLL) clock multiplier, and a 1.24V referen.

MAX5858A Datasheet (909.19 KB)

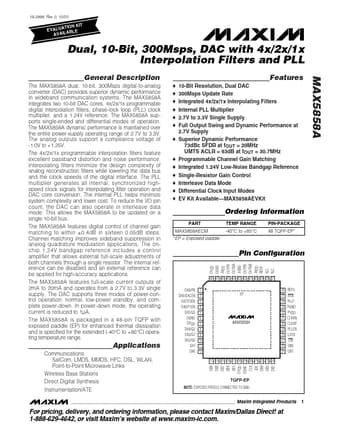

MAX5858A Datasheet Preview — Preview of MAX5858A PDF
