MAX5886, 3.3V / 12-Bit / 500Msps High Dynamic Performance DAC

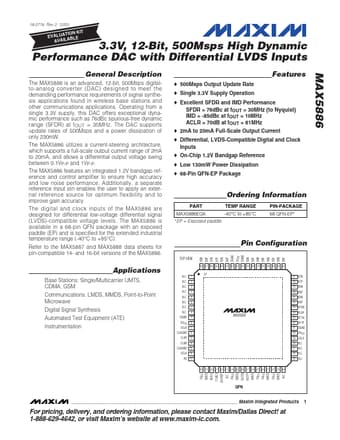

19-2776; Rev 2; 12/03 3.3V, 12-Bit, 500Msps High Dynamic Performance DAC with Differential LVDS Inputs General .
The MAX5886 is an advanced, 12-bit, 500Msps digitalto-analog converter (DAC) designed to meet the demanding performance requirements of signal synthes.

datasheet Preview Page 1 from Datasheet4u.com

MAX5886_MaximIntegratedProducts.pdf

MAX5886 Datasheet Preview — Preview of MAX5886 PDF

Datasheet Details

Part number:

MAX5886

Manufacturer:

Maxim

File Size:

473.00 KB

Description:

3.3V / 12-Bit / 500Msps High Dynamic Performance DAC

Features

* an integrated 1.2V bandgap reference and control amplifier to ensure high accuracy and low noise performance. Additionally, a separate reference input pin enables the user to apply an external reference source for optimum flexibility and to improve gain accuracy. The digital and clock inputs of the

Applications

* found in wireless base stations and other communications applications. Operating from a single 3.3V supply, this DAC offers exceptional dynamic performance such as 76dBc spurious-free dynamic range (SFDR) at fOUT = 30MHz. The DAC supports update rates of 500Msps and a power dissipation of only 230mW
