MAX5887 - 3.3V / 14-Bit / 500Msps High Dynamic Performance DAC

Maxim

📥 Download Datasheet

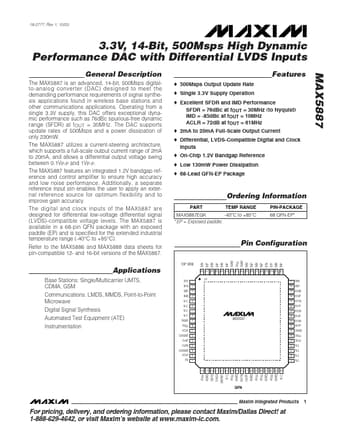

MAX5887 Datasheet Preview — Preview of MAX5887 PDF

Datasheet Details

Part number: MAX5887
Manufacturer: Maxim
File Size: 0.96 MB
Datasheet: MAX5887_MaximIntegratedProducts.pdf
Description: 3.3V / 14-Bit / 500Msps High Dynamic Performance DAC

MAX5887 Product details

Description

The MAX5887 is an advanced, 14-bit, 500Msps digitalto-analog converter (DAC) designed to meet the demanding performance requirements of signal synthesis applications found in wireless base stations and other communications applications.

Features

an integrated 1.2V bandgap reference and control amplifier to ensure high accuracy and low noise performance. Additionally, a separate reference input pin enables the user to apply an external reference source for optimum flexibility and to improve gain accuracy. The digital and clock inputs of the MAX5887 are designed for differential low-voltage differential signal (LVDS)-compatible voltage levels. The MAX5887 is available in a 68-pin QFN package with an exposed paddle (EP) and is specified fo.
