MAX710

3.3V/5V or Adjustable / Step-Up/Down DC-DC Converters

MAX710 Features

* o Step-Up/Down Voltage Conversion o +1.8V to +11V Input Range o Output: 5V/250mA at VIN = 1.8V 5V/500mA at VIN = 3.6V o No External FETs Required o Load Disconnected from Input in Shutdown o Battery Drain: 200µA No-Load (VIN = 4V) 7µA in Standby 0.2µA when Off o Low-Noise and High-Efficiency Modes

MAX710 General Description

The MAX710/MAX711 integrate a step-up DC-DC converter with a linear regulator to provide step-up/down voltage conversion. They are optimized for battery applications where the input varies above and below the regulated output voltage. They have an input range from +1.8V to +11V. Typical efficiency w.

MAX710 Datasheet (332.61 KB)

Preview of MAX710 PDF

Datasheet Details

Part number:

MAX710

Manufacturer:

Maxim

File Size:

332.61 KB

Description:

3.3v/5v or adjustable / step-up/down dc-dc converters.

📁 Related Datasheet

MAX71020 Single-Chip Electricity Meter AFE (Maxim)

MAX71020A Energy Measurement AFE (Silergy)

MAX71020A Energy Measurement AFE (Maxim Integrated)

MAX71071 Dual-Channel Isolated Metrology ADCs (Silergy)

MAX71071 Dual-Channel Isolated Metrology ADCs (Maxim Integrated)

MAX71071H Dual-Channel Isolated Metrology ADCs (Maxim Integrated)

MAX711 3.3V/5V or Adjustable / Step-Up/Down DC-DC Converters (Maxim)

MAX712 NiCd/NiMH Battery Fast-Charge Controllers (Maxim)

MAX7126 Digit A/D Converter (Maxim Integrated)

MAX7129 4-1/2 Digit Single-Chip A/D Converter with LCD Driver (Maxim)

TAGS

MAX710 3.3V Adjustable Step-Up Down DC-DC Converters Maxim

Image Gallery

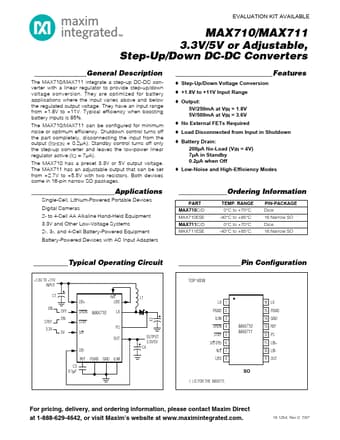

MAX710 Datasheet Preview Page 2 MAX710 Datasheet Preview Page 3
