MAX71314C, MAX71315C Datasheet - Silergy

MAX71314C SinglePhase/Polyphase Electricity Meter SoC

The ZON™ M3S/M3SL and P3S/P3SL (MAX71315C/ MAX71314C and MAX71335C/MAX71334C) integrate dual 32-bit processors and security engines for demanding single phase (MAX71315C/MAX71314C) and poly-phase (MAX71335C/MAX71334C) metering applications with up to 256KB flash, 21KB RAM, and a single-cycle 32x32 +.

MAX71314C Features

* Advanced Metrology Provides the Best-In-Class Performance

* Up to Seven Metrology Channels for Polyphase Metering and Up to Four Channels for Single-/ TwoPhase Metering

* 0.1% Typical Accuracy Over 5000:1 Current Range with Integrated Metrology ADCs

* Integrated ADCs Su

MAX71315C-Silergy.pdf

This datasheet PDF includes multiple part numbers: MAX71314C, MAX71315C. Please refer to the document for exact specifications by model.

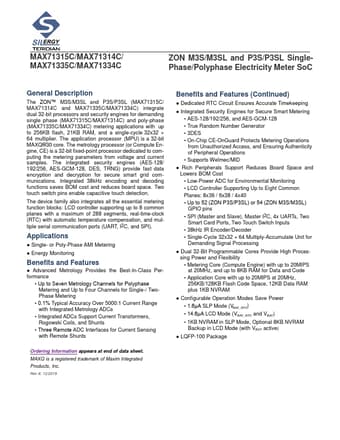

MAX71314C Datasheet Preview Page 2 MAX71314C Datasheet Preview Page 3

Datasheet Details

Part number:

MAX71314C, MAX71315C

Manufacturer:

Silergy

File Size:

1.32 MB

Description:

Singlephase/polyphase electricity meter soc.

Note:

This datasheet PDF includes multiple part numbers: MAX71314C, MAX71315C.
Please refer to the document for exact specifications by model.
