MAX71315S - Poly- and Single-Phase Energy Meter SoCs

Silergy

📥 Download Datasheet

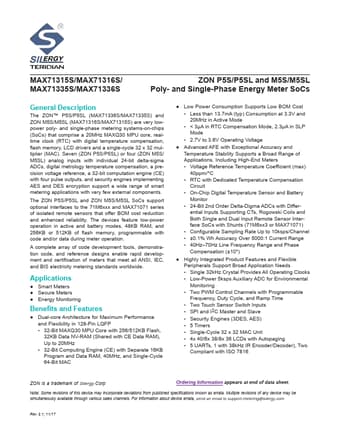

MAX71315S Datasheet Preview — Preview of MAX71315S PDF

Datasheet Details

Part number	MAX71315S
Manufacturer	Silergy
File Size	1.98 MB
Description	Poly- and Single-Phase Energy Meter SoCs
Datasheet	MAX71315S-Silergy.pdf

MAX71315S Product details

Description

The ZON™ P5S/P5SL (MAX71336S/MAX71335S) and ZON M5S/M5SL (MAX71316S/MAX71315S) are very lowpower poly- and single-phase metering systems-on-chips (SoCs) that comprise a 20MHz MAXQ30 MPU core, realtime clock (RTC) with digital temperature compensation, flash memory, LCD drivers and a single-cycle 32 x 32 multiplier (MAC).

Features

Dual-core Architecture for Maximum Performance and Flexibility in 128-Pin LQFP.
32-Bit MAXQ30 MPU Core with 256/512KB Flash, 32KB Data NV-RAM (Shared with CE Data RAM), Up to 20MHz.
32-Bit Computing Engine (CE) with Separate 16KB Program and Data RAM, 40MHz, and Single-Cycle 64-Bit MAC.
Low Power Consumption Supports Low BOM Cost.
Less than 13.7mA (typ) Consumption at 3.3V and 20MHz in Active Mode.
< 3µA in RTC Compensation Mode, 2.3µ.
