MAX71071

Dual-Channel Isolated Metrology ADCs

MAX71071 Features

* Accurately Measure Voltage and Current

* Dual 24-Bit ADC

* 0.1% Accuracy Over 2000:1 Dynamic Range

* Exceeds IEC 62053/ANSI C12.20 Standards

* On-Chip Temperature Sensor Enables Localized Digital Temperature Compensation

* Galvanic Isolation

MAX71071 General Description

The MAX71071/MAX71071H are dual-channel isolated analog-to-digital converters (ADCs) for use with a compatible MAX71xxx host. The device provides current and voltage measurements to the host while the host provides control, command, and power to the MAX71071/MAX71071H. A pulse transformer provides t.

MAX71071 Datasheet (315.84 KB)

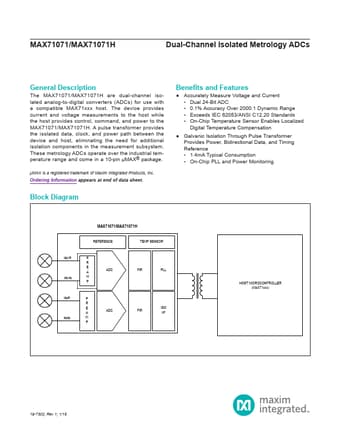

Preview of MAX71071 PDF

Datasheet Details

Part number:

MAX71071

Manufacturer:

Maxim Integrated ↗

File Size:

315.84 KB

Description:

Dual-channel isolated metrology adcs.
