MAX711 - 3.3V/5V or Adjustable / Step-Up/Down DC-DC Converters

MAX711 Description

AVAILABLE EVALUATION KIT AVAILABLE MAX710/MAX711 3.3V/5V or Adjustable, Step-Up/Down DC-DC Converters _______________General .
The MAX710/MAX711 integrate a step-up DC-DC converter with a linear regulator to provide step-up/down voltage conversion.

MAX711 Features

* o Step-Up/Down Voltage Conversion o +1.8V to +11V Input Range o Output: 5V/250mA at VIN = 1.8V 5V/500mA at VIN = 3.6V o No External FETs Required o Load Disconnected from Input in Shutdown o Battery Drain: 200µA No-Load (VIN = 4V) 7µA in Standby 0.2µA when Off o Low-Noise and High-Efficiency Modes

MAX711 Applications

* where the input varies above and below the regulated output voltage. They have an input range from +1.8V to +11V. Typical efficiency when boosting battery inputs is 85%. The MAX710/MAX711 can be configured for minimum noise or optimum efficiency. Shutdown control turns off the part completely, disco

📥 Download Datasheet

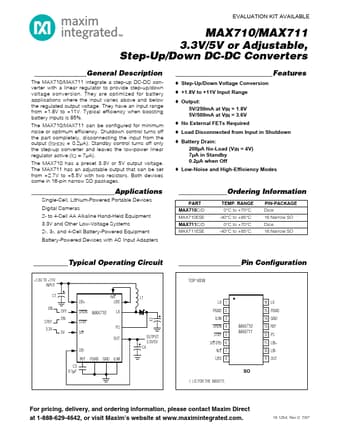

Preview of MAX711 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX711
Manufacturer
Maxim
File Size
332.61 KB
Datasheet
MAX711_MaximIntegratedProducts.pdf
Description
3.3V/5V or Adjustable / Step-Up/Down DC-DC Converters
