MAX942 - Single-Supply Comparators

MAX942 Description

19-0229; Rev 3; 6/97 High-Speed, Low-Power, 3V/5V, Rail-to-Rail Single-Supply Comparators _______________General .
The MAX941/MAX942/MAX944 are single/dual/quad high-speed comparators optimized for systems powered from a 3V or 5V supply.

MAX942 Features

* latch enable and device shutdown. The single MAX941 and dual MAX942 are offered in a tiny µMAX package. Both the single and dual MAX942 are available in 8-pin DIP and SO packages. The quad MAX944 comes in 14-pin DIP and narrow SO packages. ____________________________Features o Available in µMAX Pa

MAX942 Applications

* (operation down to 2.7V) o Fast, 80ns Propagation Delay (5mV overdrive) o Rail-to-Rail Input Voltage Range o Low Power: 1mW Power Dissipation per Comparator (3V) 350µA Supply Current o Low, 1mV Offset Voltage o Internal Hysteresis for Clean Switching o Outputs Swing 200mV of Power Rails o CMOS/TTL-C

📥 Download Datasheet

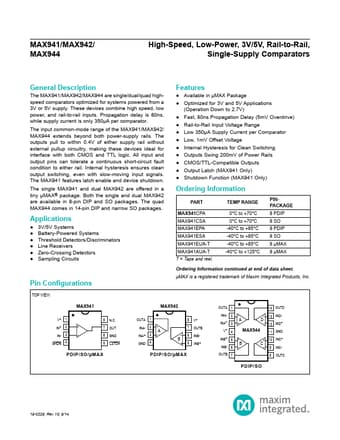

Preview of MAX942 PDF
