MAX9426 - (MAX9424 - MAX9427) Lowest Jitter Quad PECL-to-ECL Differential Translators

Product Overview

Maxim Integrated Products

Part number	MAX9426
Manufacturer	Maxim Integrated Products
File Size	376.81 KB
Description	(MAX9424 - MAX9427) Lowest Jitter Quad PECL-to-ECL Differential Translators
Datasheet	MAX9426 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX9426, MAX9424. Please refer to the document for exact specifications by model.

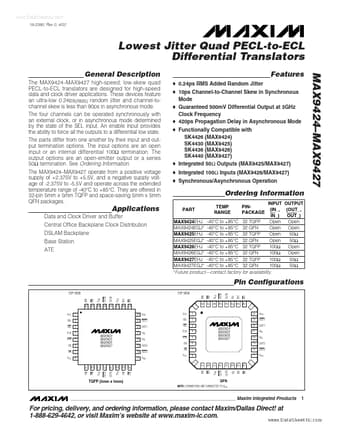

Additional preview pages of the MAX9426 datasheet.

The MAX9424 MAX9427 high-speed, low-skew quad PECL-to-ECL translators are designed for high-speed data and clock driver applications.

MAX9424.
MAX9427 Ordering Information INPUT OUTPUT (IN_, (OUT_, OUT_) IN_) MAX9424EHJ -40°C to +85°C 32 TQFP Open Open MAX9424EGJ.
-40°C to +85°C 32 QFN Open Open MAX9425EHJ -40°C to +85°C 32 TQFP Open 50Ω MAX9425EGJ.
-40°C to +85°C 32 QFN Open 50Ω MAX9426EHJ -40°C to +85°C 32 TQFP 100Ω Open MAX9426EGJ.
-40°C to +85°C 32 QFN 100Ω Open MAX9427EHJ -40°C to +85°C 32 TQFP 100Ω 50Ω MAX9427EGJ.
-40°C to +85°C 32 QFN 100Ω 50Ω.
Future product.
contact factory for avai.
