MAX9421 - (MAX9420 - MAX9423) Quad Differential LVECL-to-LVPECL Translators

Product Overview

Maxim Integrated Products

Part number	MAX9421
Manufacturer	Maxim Integrated Products
File Size	374.54 KB
Description	(MAX9420 - MAX9423) Quad Differential LVECL-to-LVPECL Translators
Datasheet	MAX9421 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX9421, MAX9420. Please refer to the document for exact specifications by model.

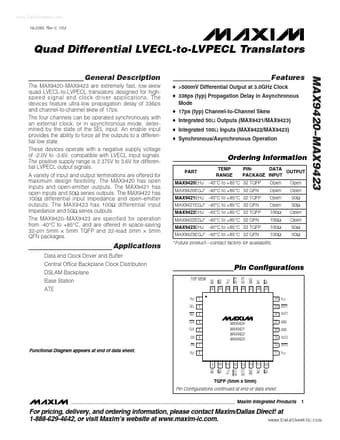

Additional preview pages of the MAX9421 datasheet.

The MAX9420 MAX9423 are extremely fast, low-skew quad LVECL-to-LVPECL translators designed for highspeed signal and clock driver applications.

o >500mV Differential Output at 3.0GHz Clock o 336ps (typ) Propagation Delay in Asynchronous Mode o 17ps (typ) Channel-to-Channel Skew o Integrated 50Ω Outputs (MAX9421/MAX9423) o Integrated 100Ω Inputs (MAX9422/MAX9423) o Synchronous/Asynchronous Operation MAX9420.
MAX9423 Ordering Information PART MAX9420EHJ MAX9421EHJ MAX9422EHJ MAX9423EHJ TEMP RANGE.
