MAX9452, MAX9450, High-Precision Clock Generators

19-0547; Rev 3; 11/07 EVALUATION KIT AVAILABLE High-Precision Clock Generators with Integrated VCXO MAX9450/MAX9451/MAX9452 General .
The MAX9450/MAX9451/MAX9452 clock generators provide high-precision clocks for timing in SONET/SDH systems or Gigabit Ethernet systems.

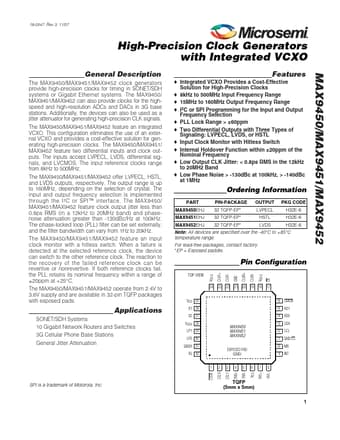

datasheet Preview Page 1 from Datasheet4u.com

MAX9450-Microsemi.pdf

MAX9452 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX9452, MAX9450. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX9452, MAX9450

Manufacturer:

Microsemi ↗

File Size:

383.98 KB

Description:

High-Precision Clock Generators

Note:

This datasheet PDF includes multiple part numbers: MAX9452, MAX9450.
Please refer to the document for exact specifications by model.

Features

* Integrated VCXO Provides a Cost-Effective Solution for High-Precision Clocks
* 8kHz to 500MHz Input Frequency Range
* 15MHz to 160MHz Output Frequency Range
* I2C or SPI Programming for the Input and Output Frequency Selection
* PLL Lock Range > ±60ppm
