MAX3673 Datasheet, Synthesizer, Microsemi

MAX3673 Features

  • Synthesizer 40kHz jitter transfer bandwidth, 0.3psRMS (12kHz to 20MHz) integrated phase jitter, and best-in-class power-supply noise rejection (PSNR), making it ideal for jitter cleanup, frequency

PDF File Details

Part number:

MAX3673

Manufacturer:

Microsemi ↗

File Size:

419.98kb

Download:

📄 Datasheet

Description:

Low-jitter frequency synthesizer. The MAX3673 is a low-jitter frequency synthesizer that accepts two reference clock inputs and generates nine phase-aligned outputs. T

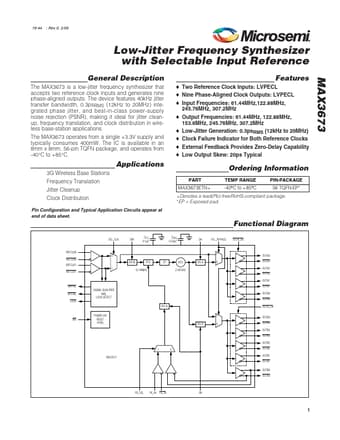

Datasheet Preview: MAX3673 📥 Download PDF (419.98kb)
Page 2 of MAX3673 Page 3 of MAX3673

MAX3673 Application

  • Applications The MAX3673 operates from a single +3.3V supply and typically consumes 400mW. The IC is available in an 8mm x 8mm, 56-pin TQFN package

TAGS

MAX3673
Low-Jitter
Frequency
Synthesizer
Microsemi
