MAX9450 - High-Precision Clock Generators

MAX9450 Description

19-0547; Rev 3; 11/07 EVALUATION KIT AVAILABLE High-Precision Clock Generators with Integrated VCXO MAX9450/MAX9451/MAX9452 General .
The MAX9450/MAX9451/MAX9452 clock generators provide high-precision clocks for timing in SONET/SDH systems or Gigabit Ethernet systems.

MAX9450 Features

* Integrated VCXO Provides a Cost-Effective Solution for High-Precision Clocks
* 8kHz to 500MHz Input Frequency Range
* 15MHz to 160MHz Output Frequency Range
* I2C or SPI Programming for the Input and Output Frequency Selection
* PLL Lock Range > ±60ppm

📥 Download Datasheet

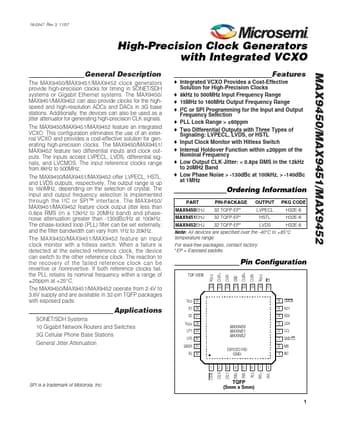

Preview of MAX9450 PDF
datasheet Preview Page 2 datasheet Preview Page 3
