MAX9451, MAX9450 - High-Precision Clock Generators

MAX9451 Description

www.DataSheet4U.com 19-0547; Rev 2; 9/06 High-Precision Clock Generators with Integrated VCXO General .
The MAX9450/MAX9451/MAX9452 clock generators provide high-precision clocks for timing in SONET/SDH systems or Gigabit Ethernet systems.

MAX9451 Features

* Integrated VCXO Provides a Cost-Effective Solution for High-Precision Clocks
* 8kHz to 500MHz Input Frequency Range
* 15MHz to 160MHz Output Frequency Range
* I2C or SPI Programming for the Input and Output Frequency Selection
* PLL Lock Range > ±60ppm

MAX9451 Applications

* SONET/SDH Systems 10 Gigabit Network Routers and Switches 3G Cellular Phone Base Stations General Jitter Attenuation MAX9450 MAX9451 MAX9452 EXPOSED PAD (GND) 1 LOCK 2 SEL0 3 SEL1 4 IN0+ 5 IN0- 6 VDD 7 IN1+ SPI is a trademark of Motorola, Inc. TQFP (5mm x 5mm) 1 __________________________

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX9451, MAX9450. Please refer to the document for exact specifications by model.

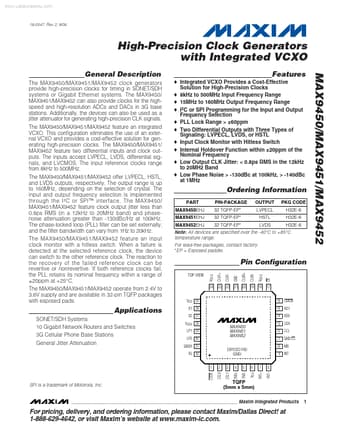

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX9451, MAX9450
Manufacturer
Maxim Integrated ↗ Products
File Size
333.32 KB
Datasheet
MAX9450_MaximIntegratedProducts.pdf
Description
High-Precision Clock Generators
Note
This datasheet PDF includes multiple part numbers: MAX9451, MAX9450.
Please refer to the document for exact specifications by model.
