MAX9452, MAX9450 Datasheet - Maxim Integrated Products

MAX9452 High-Precision Clock Generators

The MAX9450/MAX9451/MAX9452 clock generators provide high-precision clocks for timing in SONET/SDH systems or Gigabit Ethernet systems. The MAX9450/ MAX9451/MAX9452 can also provide clocks for the highspeed and high-resolution ADCs and DACs in 3G base stations. Additionally, the devices can also be .

MAX9452 Features

* Integrated VCXO Provides a Cost-Effective Solution for High-Precision Clocks

* 8kHz to 500MHz Input Frequency Range

* 15MHz to 160MHz Output Frequency Range

* I2C or SPI Programming for the Input and Output Frequency Selection

* PLL Lock Range > ±60ppm

MAX9450_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX9452, MAX9450. Please refer to the document for exact specifications by model.

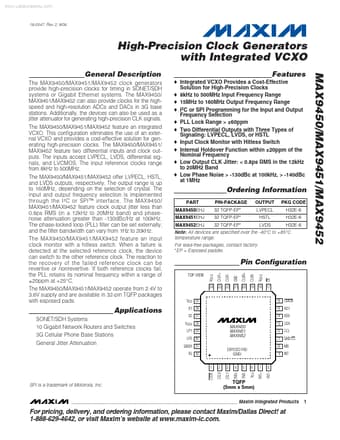

MAX9452 Datasheet Preview Page 2 MAX9452 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX9452, MAX9450

Manufacturer:

Maxim Integrated ↗ Products

File Size:

333.32 KB

Description:

High-precision clock generators.

Note:

This datasheet PDF includes multiple part numbers: MAX9452, MAX9450.
Please refer to the document for exact specifications by model.
