MAX9450

High-Precision Clock Generators

MAX9450 Features

* Integrated VCXO Provides a Cost-Effective Solution for High-Precision Clocks

* 8kHz to 500MHz Input Frequency Range

* 15MHz to 160MHz Output Frequency Range

* I2C or SPI Programming for the Input and Output Frequency Selection

* PLL Lock Range > ±60ppm

MAX9450 General Description

The MAX9450/MAX9451/MAX9452 clock generators provide high-precision clocks for timing in SONET/SDH systems or Gigabit Ethernet systems. The MAX9450/ MAX9451/MAX9452 can also provide clocks for the highspeed and high-resolution ADCs and DACs in 3G base stations. Additionally, the devices can also be .

MAX9450 Datasheet (333.32 KB)

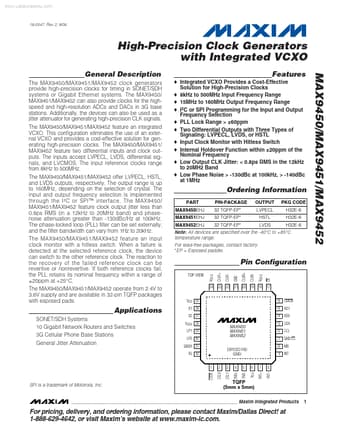

Preview of MAX9450 PDF

Datasheet Details

Part number:

MAX9450

Manufacturer:

Maxim Integrated ↗ Products

File Size:

333.32 KB

Description:

High-precision clock generators.
