MS7212 - PRESSURE SENSOR DIE

MS7212 Description

MS7212 PRESSURE SENSOR DIE (0-12 BAR) FOR HARSH ENVIRONMENT * 0 to 1200 kPa range (12 bar or 174 PSI) * Absolute pressure sensors The MS7212 is an absolute silicon micro-machined pressure sensor for harsh environment.

MS7212 Features

* Media resistive pressure sensor die
* Output Span 150mV @ 5 V
* Temperature Range -40°…+125°C
* Linearity 0.05% (typical)
* Die Size 1.63 x 1.95 mm2

📥 Download Datasheet

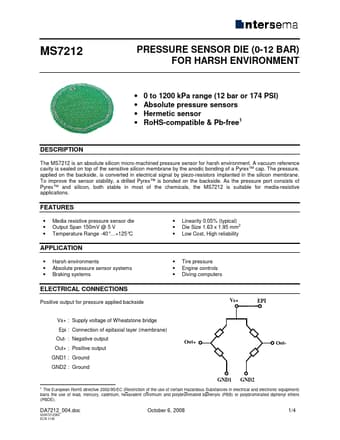

Preview of MS7212 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MS7212
Manufacturer
Measurement
File Size
223.46 KB
Datasheet
MS7212-Measurement.pdf
Description
PRESSURE SENSOR DIE
