MS7212-A2 - Hermetic Pressure Sensor Die

MS7212-A2 Description

PRELIMINARY MS7212-A2 Hermetic Pressure Sensor Die (0-12 bar) * 0 to 1200 kPa range (12 bar or 174 PSI) * Absolute pressure sensor The MS7212-A2 is an absolute silicon micro-machined pressure sensor for harsh environment, with the pads on one side.

MS7212-A2 Features

* Media resistive pressure sensor die
* Output Span 150 mV @ 5 V
* Temperature Range -40 °C … + 150 °C
* Linearity 0.05

📥 Download Datasheet

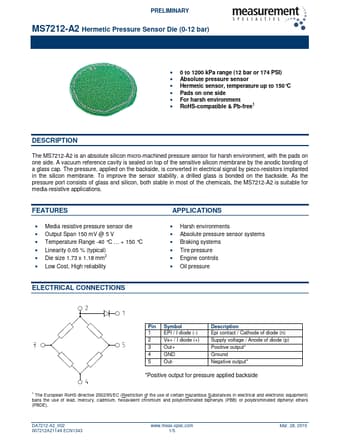

Preview of MS7212-A2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MS7212-A2
Manufacturer
Measurement
File Size
190.20 KB
Datasheet
MS7212-A2-Measurement.pdf
Description
Hermetic Pressure Sensor Die
