MS7372

Integrates CVBS And FHD Filter Driver

MS7372 Features

* two low-power shutdown pin that is activated by driving DIS_FHD/DIS_CVBS low. The MS7372 has lead SOP-8 package, the MS7372M has lead MSOP-8 package, and ESD (HBM) reaches 8KV. FEATURES

* Sixth-order 72MHz (FHD) Filter

* Sixth-order 10MHz (CVBS) Filter

* Transparent input clamping

MS7372 General Description

The MS7372/MS7372M is a video buffer which integrated single CVBS channel and single FHD channel video amplifier .The video amplifiers integrated single 6dB Gain rail-to-rail output driver and 3rd output reconstruction filter. Operating from single supplies ranging from +2.7V to +5V and sinking an u.

MS7372 Datasheet (936.64 KB)

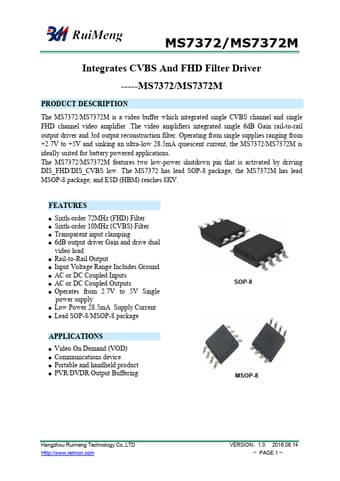

MS7372 Datasheet Preview — Preview of MS7372 PDF

Datasheet Details

Part number:

MS7372

Manufacturer:

Ruimeng

File Size:

936.64 KB

Description:

Integrates cvbs and fhd filter driver.
